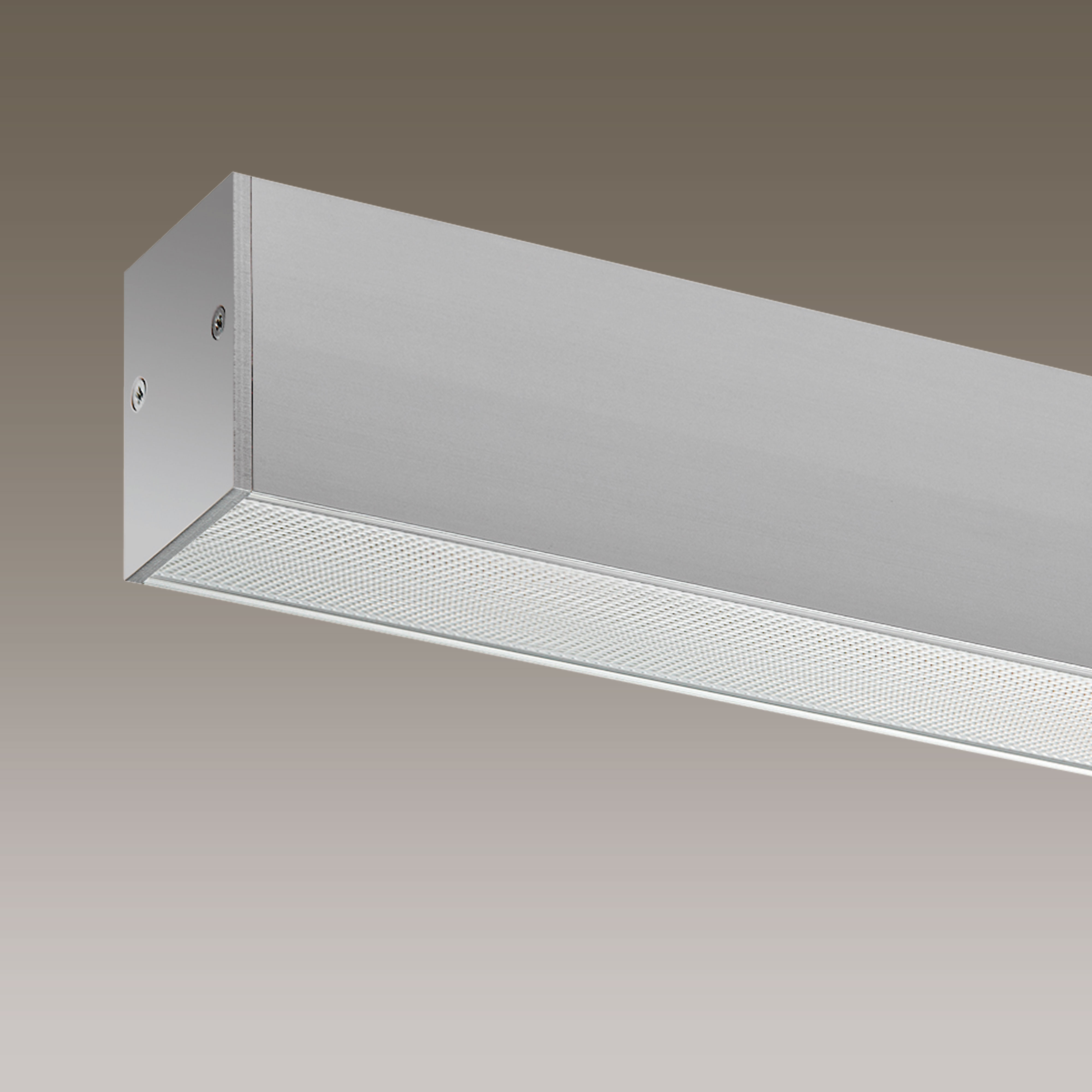

ZR44 exposed prism.
LED light band ZEN
IP20. For ceiling, wall or pendant mounting.
Thanks to the modular design, luminaires can be created starting from a length of just 570 mm up to your desired length. Installations of anything from individual luminaires to light lines or shapes are possible. Can be optionally equipped with emergency element from a minimum length of 1135 mm. Ball-proof available.
The prices quoted are guide prices per metre. For lengths less than 2 metres may incur additional costs of 20 %.
Models
| Item number | Watt | Lumen | Light color | Equipment | Cover | Ball-proof |
|---|---|---|---|---|---|---|
| 100ZR44-M1B93 | 25.6 W | 2742 lm | 3000K | prism. | nein | |
| 100ZR44-M1B94 | 25.6 W | 2926 lm | 4000K | prism. | nein | |
| 100ZR44-M1BD93 | 25.6 W | 2742 lm | 3000K | DALI | prism. | nein |
| 100ZR44-M1BD94 | 25.6 W | 2926 lm | 4000K | DALI | prism. | nein |
| 100ZR44-T1B93 | 16.8 W | 1880 lm | 3000K | prism. | nein | |
| 100ZR44-T1B94 | 16.8 W | 2005 lm | 4000K | prism. | nein | |
| 100ZR44-T1BD93 | 16.8 W | 1880 lm | 3000K | DALI | prism. | nein |
| 100ZR44-T1BD94 | 16.8 W | 2005 lm | 4000K | DALI | prism. | nein |
| 100ZR44B-M1B93 | 25.6 W | 2742 lm | 3000K | prism. | ja | |
| 100ZR44B-M1B94 | 25.6 W | 2926 lm | 4000K | prism. | ja | |
| 100ZR44B-M1BD93 | 25.6 W | 2742 lm | 3000K | DALI | prism. | ja |
| 100ZR44B-M1BD94 | 25.6 W | 2926 lm | 4000K | DALI | prism. | ja |
| 100ZR44B-T1B93 | 16.8 W | 1880 lm | 3000K | prism. | ja | |
| 100ZR44B-T1B94 | 16.8 W | 2005 lm | 4000K | prism. | ja | |
| 100ZR44B-T1BD93 | 16.8 W | 1880 lm | 3000K | DALI | prism. | ja |
| 100ZR44B-T1BD94 | 16.8 W | 2005 lm | 4000K | DALI | prism. | ja |
