NEXON

A system to light you up.

“With NEXON, we present an innovative lighting band system that, thanks to its metric and modular design with up to 13 poles, enables flexible and future-proof installation – with no labour-intensive planning required. At the same time, we lay the foundation for smart connections and energy-efficient lighting solutions that can be optimally adapted to the requirements of a wide range of environments. This makes NEXON so much more than just a product – it's a sustainable system capable of meeting the challenges of today and tomorrow.”

Livio Causio, Development / Product Design

NEXON – five convincing reasons.

Future-proof with 13 poles
Simple planning in the metric system
Quick installation – no tools required
Flexible design – modular setup
Versatile application

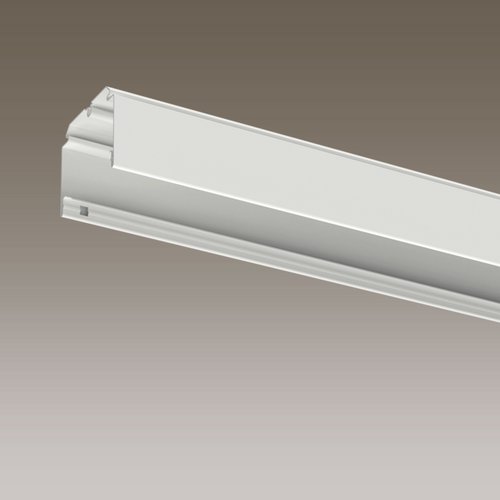

150NR-13

Support rail NEXON

LED. L=1500mm, W=64mm, H=54mm. Integrated wiring 13 x 2.5 mm². For surface and pendant mounting. Profile made of galvanised resin-coated steel, traffic white.

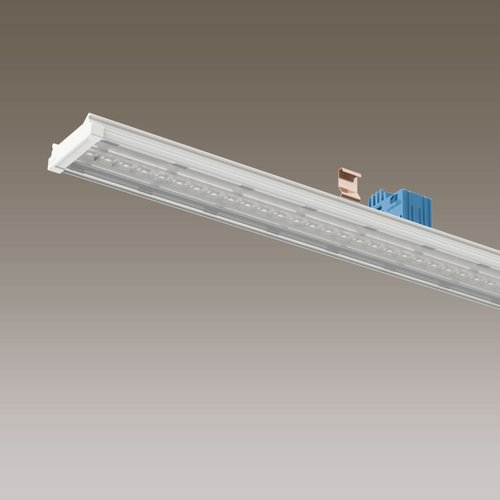

100NR22T-M1AD84

System luminaire NEXON

35W LED, 6070 Lumen, 174 Lumen/Watt, 4000 Kelvin. L=1000mm, CRI>80, UGR<25, IP21. IP50 in lamp housing. Beam pattern symmetric, deep-wide beam, light emission direct. Energy efficiency of the light source: B. LED service life of up to 100.000 h. Colour tolerance of < 3 SDCM. Lens from PMMA clear. Housing made of aluminium, traffic white. Simple clipping in for electrical contacting and mechanical fastening in the support rail system NEXON. With electronic ballast. With DALI control.

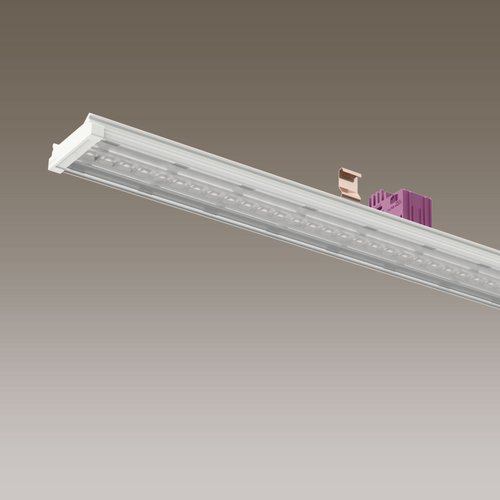

100NR22T-V1A84

System luminaire NEXON

34W LED, 6070 Lumen, 179 Lumen/Watt, 4000 Kelvin. L=1000mm, CRI>80, UGR<25, IP21. IP50 in lamp housing. Beam pattern symmetric, deep-wide beam, light emission direct. Energy efficiency of the light source: B. LED service life of up to 100.000 h. Colour tolerance of < 3 SDCM. Lens from PMMA clear. Housing made of aluminium, traffic white. Simple clipping in for electrical contacting and mechanical fastening in the support rail system NEXON. With electronic ballast.

Whether as a single luminaire or continuous lighting band: The NEXON lighting band system is designed for a wide range of installation types – from direct ceiling mounting to pendulum mounting with rope or chain pendulum. The integrated power supply system is made of environmentally friendly materials, free from halogens and silicones, thus supporting sustainable construction projects.

Colour temperature: 4000 K
Mounting rail length: up to 4.5 m
Luminaire length: up to 2 m
Integrated wiring. 7-poled, 13-poled
Colour rendering: CRI > 80
Beam characteristics: wide beam, narrow beam, asymmetrical
Unified Glare Rating: up to UGR < 19
Luminous flux (effective): up to 12,000 lm/m
System efficiency: up to 180 lm/W
IP protection: IP20, IP54
ON/OFF, DALI-2
Lifespan up to 100,000 h

Thanks to the sophisticated connectors, additional rails can be integrated quickly, with no tools required – ideal for dynamically growing illumination concepts. The unrestricted positioning of the equipment carriers along the rail enables needs-based adaptation to a wide range of spatial requirements. With a maximum distance of up to 5 metres between the fixing points, the system is particularly suitable for large-scale applications.
