PERL

PERL – elegance that inspires. Check out the product teaser!

‘With the PERL range of spherical lamps, we are presenting a product that combines design, lighting quality and functionality at the highest level. The timeless spherical shape has been successfully reinterpreted into a sophisticated product range with a wide range of variants, homogeneous illumination and perfectly shaped spheres. Thanks to their clever design, the delicate combinable elements also blend seamlessly into the elegant overall appearance without the use of screws.’

Nadine Engel, Product Development/Design

PERL – five convincing reasons.

Perfect globe shape
Floating elegance
Flawless workmanship
Uniform appearance
Variety of inspiring designs

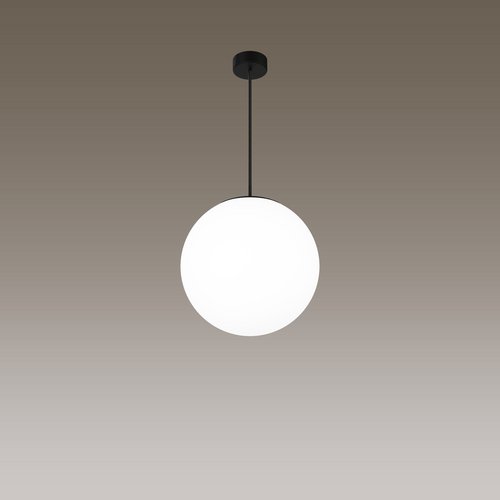

30NMPS5G-M1BD93

Cable pendant globe luminaire PERL

33.4W LED, 3733 Lumen, 112 Lumen/Watt, 3000 Kelvin. Ø=300mm, CRI>90, UGR<22, IP20. Insect-proof lamp housing. Energy efficiency class of the light source: D. Photobiological safety: RG0. Medium light output. For ceiling mounting. Spherical cover made of opal matt glass. Housing, canopy and suspension cable in matt black. Suspension made of textile cable, 1 m, can be shortened on site. With electronic ballast. With DALI control

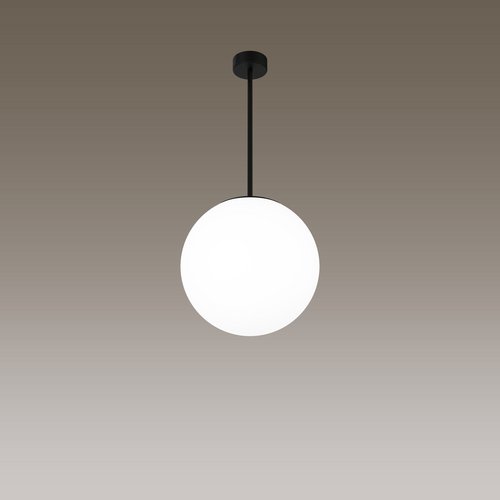

30NMRS5K-M1BD93

Tube pendant globe luminaire PERL

33.4W LED, 3997 Lumen, 120 Lumen/Watt, 3000 Kelvin. Ø=300mm, CRI>90, UGR<22, IP20. Insect-proof lamp housing. Energy efficiency class of the light source: D. Photobiological safety: RG0. Medium light output. For ceiling mounting. Spherical cover made of opal matt plastic. Housing, canopy and suspension tube in matt black. Suspension tube 1 m, with ball joint for self-levelling, can be shortened on site. With electronic ballast. With DALI control

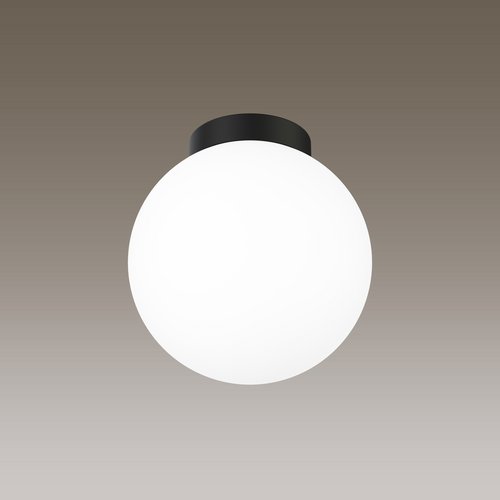

20NMS5G-M1BD93

Surface-mounted globe luminaire PERL

14.1W LED, 1572 Lumen, 112 Lumen/Watt, 3000 Kelvin. Ø=200mm, CRI>90, UGR<22, IP20. Insect-proof lamp housing. Energy efficiency class of the light source: D. Photobiological safety: RG0. Medium light output. For ceiling or wall mounting. Spherical cover made of opal matt glass. Base in matt black. With electronic ballast. With DALI control

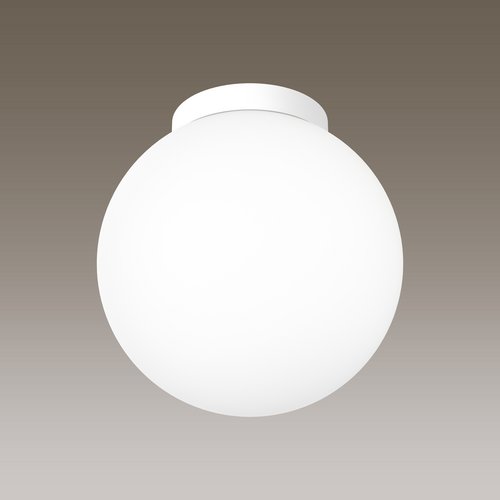

25NMW5K-T1BD93

Surface-mounted globe luminaire PERL

12.9W LED, 1598 Lumen, 124 Lumen/Watt, 3000 Kelvin. Ø=250mm, CRI>90, UGR<19, IP20. Insect-proof lamp housing. Energy efficiency class of the light source: D. Photobiological safety: RG0. Low light output. For ceiling or wall mounting. Spherical cover made of opal matt plastic. Base in matt white. With electronic ballast. With DALI control

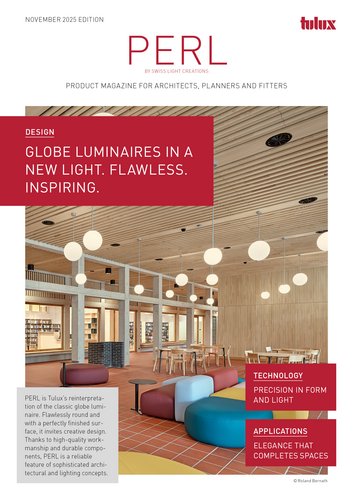

Informative illustrations, concrete facts and figures and incisive articles full of light bulb moments – our product magazine for architects, planners and fitters is packed with details of the PERL luminaire series and its applications, along with interesting information about light in general.

PERL impresses with its wide range of versions and flexible applications: as a pendant, wall-mounted or ceiling-mounted luminaire. Thanks to its compatibility with modern control systems and its dimmer feature, PERL forms the basis for a dynamic and needs-based lighting design.

Colour temperature: 3000 K and 4000 K
Dimensions: Ø 200 / 250 / 300 / 400 / 500 mm
Colour rendering: CRI > 90
Unified Glare Rating: to UGR < 19
Effective luminous flux: 1024 bis 7337 lm
System efficiency: up to 127 lm/W
Shock resistance: IK10 (plastic) / IK03 (glass)
IP class: IP20 / Insect-proof lamp housing
ON/OFF, DALI-2

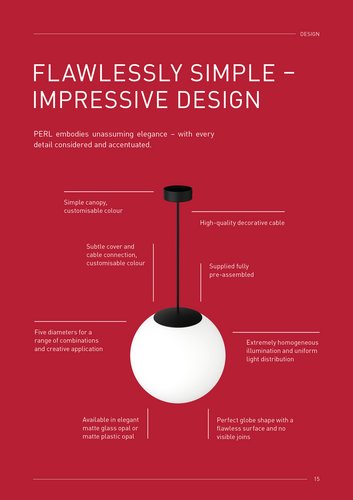

As individual as your property – We can tailor your individual solution to suit your needs:

• Dimensions
• Housing colour
• Materialisierung
• Cover material
• Light output
• Colour temperature
• IP class
• Surface-mounted cable routing

• Simple canopy
• Subtle cover and cable connection
• High-quality decorative cable
• Customisable colours
• Five diameters for a wide range of combinations
• Available in matte glass opal or matte plastic opal
• Supplied fully pre-assembled
