SPLIT

SPLIT

A product that wins people over.



“What new ideas have the designers come up with? And how do all the new individual parts, all of them manufactured in Tuggen, fit together to create a genuine Tulux luminaire? As fitters, we’re always eager to get to know the new Tulux products. The thing I like about the new SPLIT is that it has a refined and straightforward design, even though it’s also used in sports halls and factories. The high-quality individual parts are also very easy to assemble, and the agile design makes it a truly exceptional luminaire. SPLIT leaves us, as fitters, beaming with joy – and our customers are sure to be the same.”

Reto Bamert
Assembly Manager

SPLIT – five convincing reasons.

  1. Robust construction
  2. Bright: 8,000 to over 33,000 lumens
  3. Increased performance
  4. Modular construction and modification
  5. Ball-proof

Overview

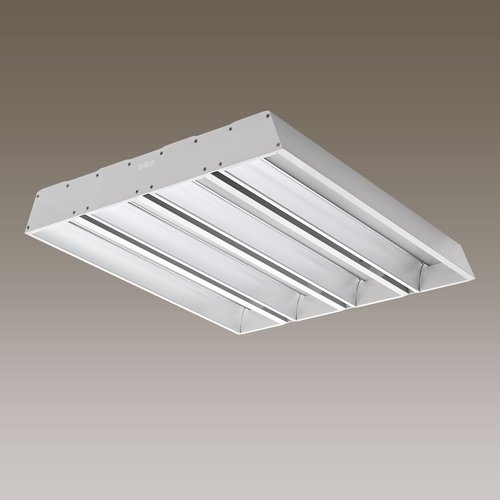

12500-82QD4

Projector SPLIT DALI

81.8W LED, 11868 Lumen, 146 Lumen/Watt, 4000 Kelvin. CRI>80, UGR<19, IP40. Matted and white coloured housing. Highly reflecting and matt gloss anodized reflector made of pure aluminium. Cover made of prismatic-polycarbonate. IP50 in the lamp housing. Medium light output. With electronic ballast. With integrated DALI control.

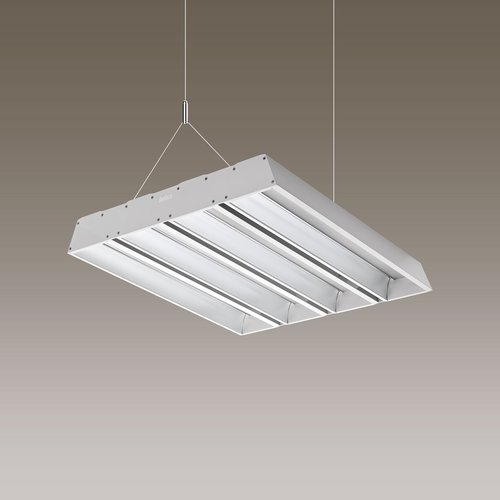

12500P-82Q4

Suspended projector SPLIT

81.8W LED, 11868 Lumen, 146 Lumen/Watt, 4000 Kelvin. CRI>80, UGR<19, IP40. Matted and white coloured housing. Highly reflecting and matt gloss anodized reflector made of pure aluminium. Cover made of prismatic-polycarbonate. Steel cable suspension adjustable in height. IP50 in the lamp housing. Medium light output. With electronic ballast.

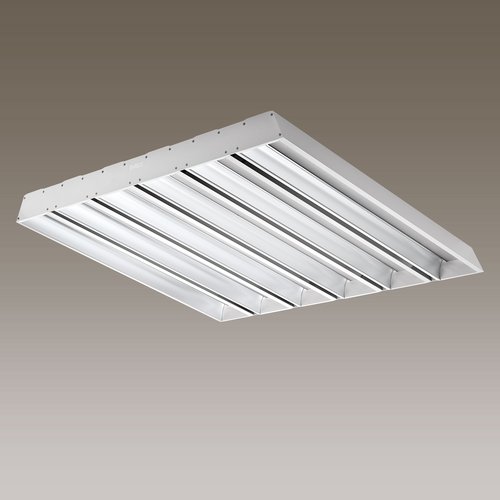

12501-186QD4

Projector SPLIT DALI

182.2W LED, 26702 Lumen, 147 Lumen/Watt, 4000 Kelvin. CRI>80, UGR<19, IP40. Matted and white coloured housing. Highly reflecting and matt gloss anodized reflector made of pure aluminium. Cover made of prismatic-polycarbonate. IP50 in the lamp housing. Medium light output. With electronic ballast. With integrated DALI control.

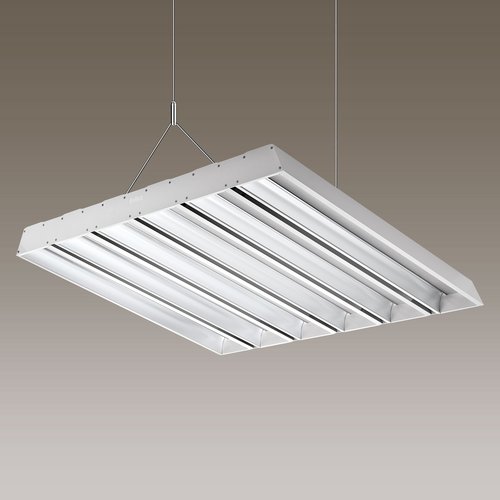

12501P-186Q4

Suspended projector SPLIT

182.2W LED, 26702 Lumen, 147 Lumen/Watt, 4000 Kelvin. CRI>80, UGR<19, IP40. Matted and white coloured housing. Highly reflecting and matt gloss anodized reflector made of pure aluminium. Cover made of prismatic-polycarbonate. Steel cable suspension adjustable in height. IP50 in the lamp housing. Medium light output. With electronic ballast.

12510-82ND3

Recessed projector SPLIT DALI

88.7W LED, 10642 Lumen, 120 Lumen/Watt, 3000 Kelvin. CRI>80, UGR<19, IP40. Matted and white coloured housing. Highly reflecting and matt gloss anodized reflector made of pure aluminium. Cover made of prismatic-polycarbonate. IP50 in the lamp housing. Medium light output. With electronic ballast. With integrated DALI control.

12510Q-82ND3

Recessed projector SPLIT DALI

88.7W LED, 10642 Lumen, 120 Lumen/Watt, 3000 Kelvin. CRI>80, UGR<19, IP40. Matted and white coloured housing. Highly reflecting and matt gloss anodized reflector made of pure aluminium. Cover made of prismatic-polycarbonate. IP50 in the lamp housing. Medium light output. With electronic ballast. With integrated DALI control.

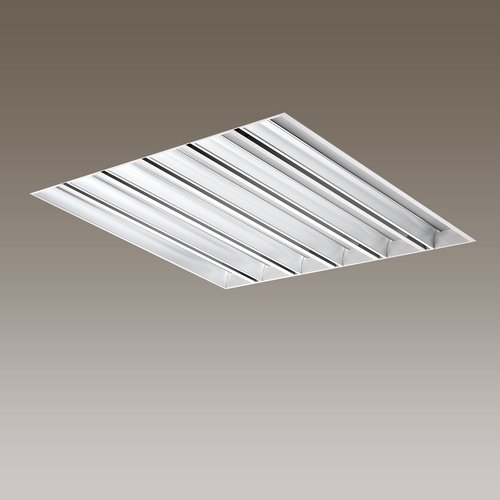

12511-186QD4

Recessed projector SPLIT DALI

182.2W LED, 26702 Lumen, 147 Lumen/Watt, 4000 Kelvin. CRI>80, UGR<19, IP40. Matted and white coloured housing. Highly reflecting and matt gloss anodized reflector made of pure aluminium. Cover made of prismatic-polycarbonate. IP50 in the lamp housing. Medium light output. With electronic ballast. With integrated DALI control.

DESIGN

  • Impresses with its simple, functional design
  • Subdivided construction provides thermal and mechanical advantages
  • The elegant technoid design integrates subtly into any room
  • The sophisticated linear design is thoroughly satisfying

CUSTOMISATION

  • Variable design allows implementation of customer-specific requirements
  • Individual luminaire mounting
  • Easy integration of sensors

PROFILE CONSTRUCTION / DESIGN

  • Stamped aluminium profile, optimised for cooling, stability and durability
  • Mounting elements (pendulum suspension, ceiling bracket and mounting frame) are compatible with various types of luminaires
  • Quick and safe installation even in hard-to-reach places

MAINTENANCE

  • 50,000 hours of maintenance-free operation
  • Plain, low-dust finish is quick to clean
  • Pivoting suspension allows easy replacement of lamps or components
  • Luminaire protected to IP40

LIGHT OUTPUT

  • Low, medium and high light output
  • From 8,000 to over 33,000 lumens
  • 120 lm/W system efficiency
  • Each luminaire can be fitted with a self-sufficient power supply for emergency lighting

LIGHT DISTRIBUTION

  • Cover made of impact-resistant polycarbonate with a glare-free microprismatic structure
  • Meets the requirements for UGR < 22
  • Guides light efficiently to the working plane, delivering uniform illumination
  • Creates ideal visual conditions for top sporting achievements
  • Provides excellent lighting conditions for surface assessments
  • Optimum adjustment of lighting level
Example application
Example application
Example application
Example application
Example application

APPLICATIONS

  • Sports halls
  • Industrial buildings
  • Entrance halls
  • Production facilities
  • Assembly halls
  • Trade fair halls
  • Warehouse buildings
