ZEN XS
OVERVIEW

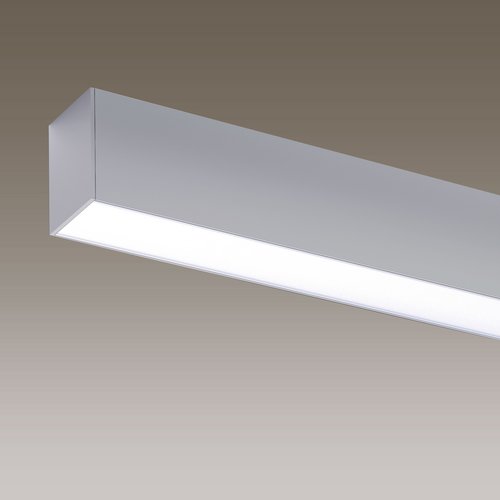

100ZR56-M1BD84
LED light band ZEN XS
12.3W LED, 1472 Lumen, 120 Lumen/Watt, 4000 Kelvin. L=1000mm, W=43mm, H=60mm, CRI>80, UGR<25, IP20. Energy efficiency class of the light source: B. For ceiling or pendant mounting. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of satin-finished acrylic glass. Direct emission. With electronic ballast. With DALI control. End plates excluded. Sensor technology optionally available.

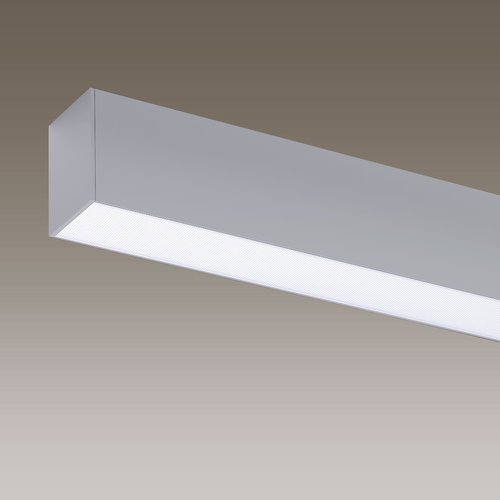

100ZR59-M1BD84
LED light band ZEN XS
14.8W LED, 1520 Lumen, 103 Lumen/Watt, 4000 Kelvin. L=1000mm, W=43mm, H=60mm, CRI>80, UGR<22, IP20. Energy efficiency class of the light source: B. For ceiling or pendant mounting. Natural anodized aluminium profile. White lacquered insert. Flush-mounted cover made of prismatic acrylic glass. Direct emission. With electronic ballast. With DALI control. End plates excluded. Sensor technology optionally available.

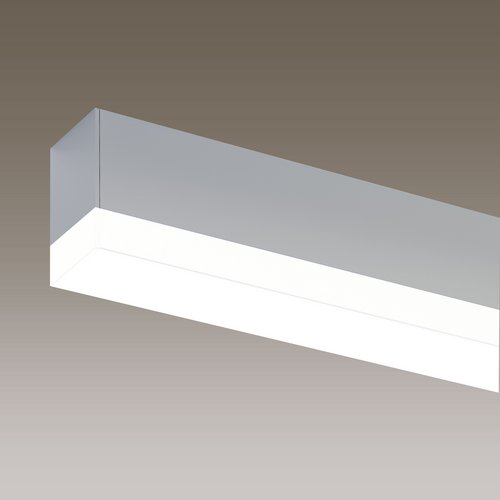

100ZR66-M1BD84
LED light band ZEN XS
12.3W LED, 1738 Lumen, 142 Lumen/Watt, 4000 Kelvin. L=1000mm, W=43mm, H=70mm, CRI>80, UGR<25, IP20. Energy efficiency class of the light source: B. For ceiling or pendant mounting. Natural anodized aluminium profile. White lacquered insert. Surface-mounted cover made of satin-finished acrylic glass. Direct and lateral emission. With electronic ballast. With DALI control. End plates excluded. Sensor technology optionally available.
TECHNICAL SPECIFICATIONS
- Colour temperature: 3,000 K and 4,000 K
- Dimensions: 43 × 60 mm (flush-mounted cover)/43 × 70 mm (surface-mounted cover)
- Colour rendering: CRI > 80
- Unified Glare Rating: up to UGR < 22
- Luminous flux (effective): up to 1,738 lm/m
- System efficiency: up to 142 lm/W
- Shock resistance: IK06 (satin-finished cover) / IK07 (prismatic cover)
- ON/OFF, DALI-2 and emergency operation
