MINI

[Translate to English:] Die neue Einbauleuchte MINI

MINI - five convincing reasons.



  1. High degree of individuality and freedom
  2. Three different versions
  3. One diameter
  4. Uniform design
  5. For basic and accent illumination

Overview

16194-6E2

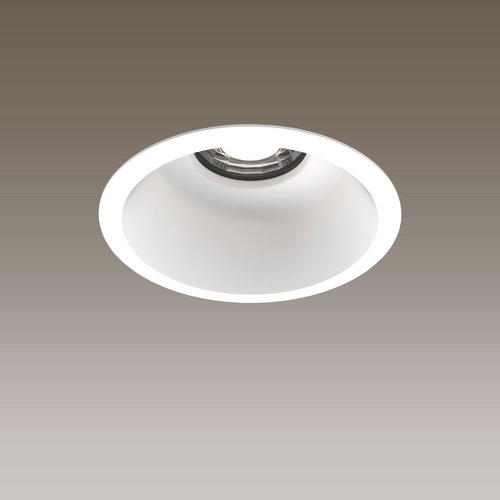

Recessed luminaire MINI

6.2W LED, 583 Lumen, 95 Lumen/Watt, 2700 Kelvin. H=102mm, Ø=101mm, CRI>90, UGR<19/<19, IP20. Cast aluminium, white. Reflector with touch protection, lighting angle 36°. Luminaire set back into ceiling with mains cable. With universal fixing brackets. Without electronic ballast.

16195-8F2

Recessed luminaire MINI

8.4W LED, 857 Lumen, 103 Lumen/Watt, 2700 Kelvin. H=112mm, Ø=101mm, CRI>90, UGR<22/<22, IP20. Cast aluminium, white. Reflector with touch protection, lighting angle 36°. Luminaire set back into ceiling with mains cable. With universal fixing brackets. Without electronic ballast.

16196-6E2

Recessed luminaire MINI

6.2W LED, 571 Lumen, 93 Lumen/Watt, 2700 Kelvin. H=104mm, Ø=101mm, CRI>90, UGR<19/<19, IP44. Cast aluminium, white. Reflector with touch protection, lighting angle 36°. Luminaire with clear cover glass and mains cable. With universal fixing brackets. Without electronic ballast.

16197-8F2

Recessed luminaire MINI

8.4W LED, 840 Lumen, 100 Lumen/Watt, 2700 Kelvin. H=114mm, Ø=101mm, CRI>90, UGR<22/<22, IP44. Cast aluminium, white. Reflector with touch protection, lighting angle 36°. Luminaire with clear cover glass and mains cable. With universal fixing brackets. Without electronic ballast.

16198-6E2

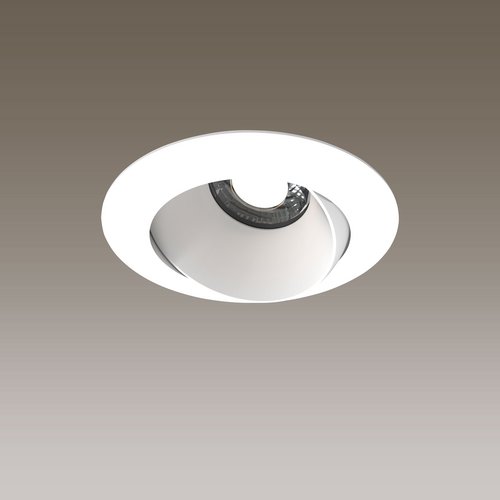

Recessed luminaire MINI

6.2W LED, 583 Lumen, 95 Lumen/Watt, 2700 Kelvin. H=105mm, Ø=101mm, CRI>90, UGR<19/<19, IP20. Cast aluminium, white. Reflector with touch protection, lighting angle 36°. ±25° pivotable. With mains cable and universal fixing brackets. Without electronic ballast.

16199-8F2

Recessed luminaire MINI

8.4W LED, 857 Lumen, 103 Lumen/Watt, 2700 Kelvin. H=114mm, Ø=101mm, CRI>90, UGR<22/<22, IP20. Cast aluminium, white. Reflector with touch protection, lighting angle 36°. ±25° pivotable. With mains cable and universal fixing brackets. Without electronic ballast.

Technical specifications

- LED
- One diameter
- CRI >90
- Color temperature: 2700K, 3000K and 4000K
- Efficiency up to 109lm/W
- IP20 and IP44
- Beam angle: 36°



Example application
Example application

Applications

  • Access zones
  • Reception
  • Restaurants
  • Hotel
  • Bath
  • Galleries
  • Office environment
  • Entrance
  • Stairwell
  • Sales
  • Living area
  • Healthcare area
  • Corridor
  • Wellness area
  • Shop
  • Covered outdoor area
