LEAN

LEAN

A product that wins people over.



“Why am I so fascinated by LEAN? Quite simple: LEAN is modest and discreet, yet at the same time highly versatile. The restrained design can even inspire to use LEAN in creative ways, and I can see LEAN in schools, offices or reception areas. It appears simple wherever it is used, but nonetheless has a presence. It’s not a matter of chance that LEAN has these qualities – they are based on the experience of our in-house development and construction teams, who, for example, have succeeded in concentrating the entire technology of LEAN into the smallest space. LEAN clearly embodies what SWISS LIGHT CREATIONS stands for: reliability and quality.”

Roland Simonet

LEAN – five convincing reasons.

  1. Homogeneous, high-quality illumination
  2. Entire technology integrated
  3. Install and combine in different ways
  4. Subtle and sophisticated
  5. Objects illuminated all around

Overview

120NG5-17ND4

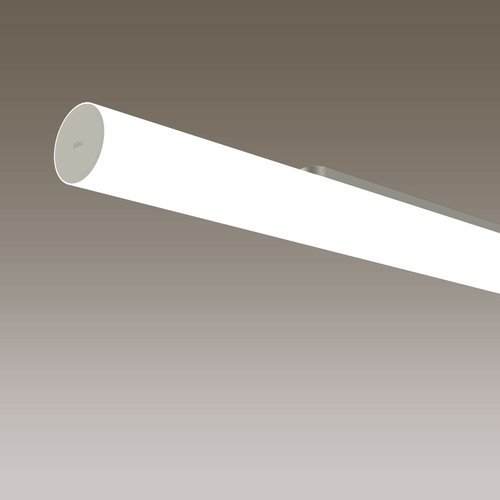

Ceiling-mounted luminaire LEAN

20.4W LED, 2430 Lumen, 120 Lumen/Watt, 4000 Kelvin. L=1190mm, H=100mm, Ø=80mm, CRI>90, UGR<19, IP50. Tube made of diffuse satinated acrylic glass. Ceiling console and front sides nickel silver pearl matt. Light output low. With electronic ballast. With DALI control.

60NG5-15MD3

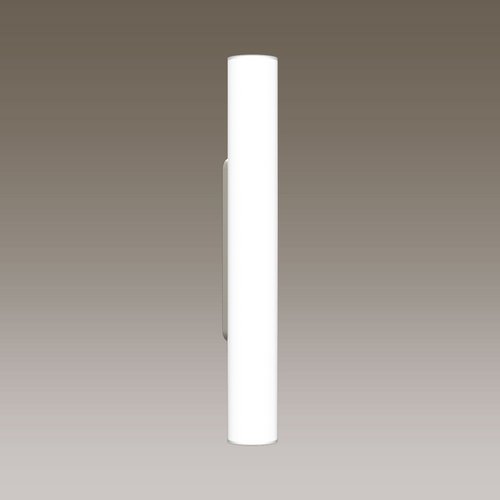

Wall-mounted luminaire LEAN

17.4W LED, 1866 Lumen, 108 Lumen/Watt, 3000 Kelvin. W=100mm, H=610mm, Ø=80mm, CRI>90, UGR<22, IP50. Tube made of diffuse satinated acrylic glass. Wall console and front sides nickel silver pearl matt. Light output intermediate. With electronic ballast. With DALI control.

120NGP5-M1AD93

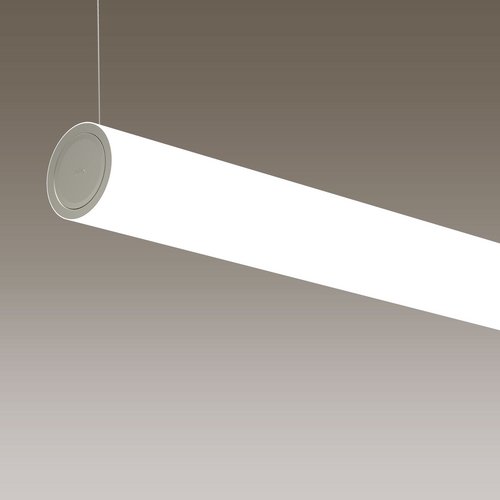

Pendant luminaire LEAN

47.6W LED, 6359 Lumen, 134 Lumen/Watt, 3000 Kelvin. L=1190mm, Ø=100mm, CRI>90, UGR<19, IP50. Horizontal pendant luminaire. Tube made of diffuse satinated acrylic glass. Front sides made of nickel silver pearl matt. Steelcable suspension max. 980mm, adjustable in height. Light output intermediate. With electronic ballast. With DALI control.

60NGS5-M1AD93

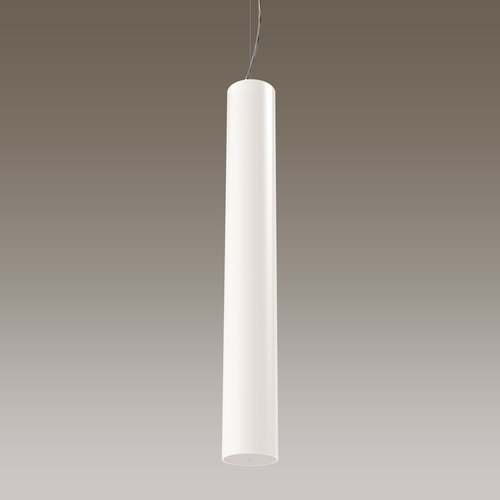

Pendant luminaire LEAN

24.2W LED, 3179 Lumen, 132 Lumen/Watt, 3000 Kelvin. H=630mm, Ø=100mm, CRI>90, UGR<22, IP50. Vertical pendant luminaire. Tube made of diffuse satinated acrylic glass. Front sides made of nickel silver pearl matt. Steelcable suspension max. 980mm, adjustable in height. Light output intermediate. With electronic ballast. With DALI control.

90NGA5-M1AD93

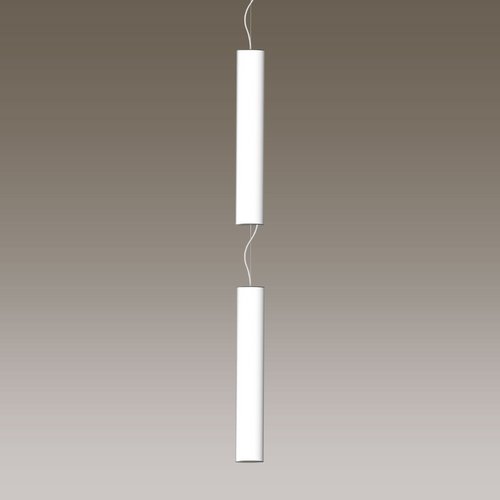

Additive pendant luminaire LEAN

36.1W LED, 4769 Lumen, 133 Lumen/Watt, 3000 Kelvin. H=908mm, CRI>90, UGR<22, IP50. Tube made of diffuse satinated acrylic glass. Front sides made of nickel silver pearl matt. Steel cable suspension is not adjustable in height. Ceiling connection and luminaire connectors must be ordered separately. Maximum of 6 luminaires beneath one another. Medium light output. With electronic control gear and DALI control.

8535-R1-M1A93

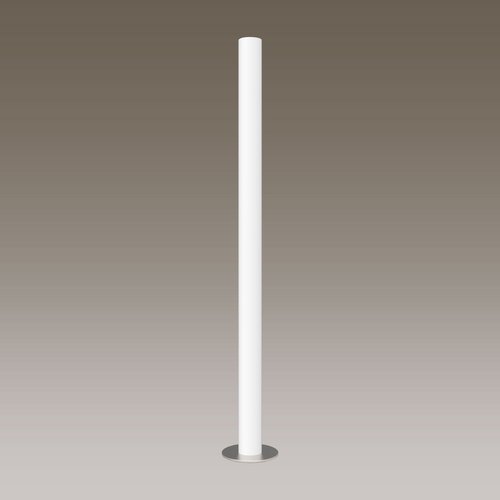

Standard luminaire LEAN

59.3W LED, 7949 Lumen, 135 Lumen/Watt, 3000 Kelvin. L=1480mm, CRI>90, UGR<25, IP50. Tube made of diffuse satinated acrylic glass. Foot plate and front side with included button nickel silver pearl matt. With electronic ballast. Can be switched and dimmed via button. With 3m connection cable.

8135-R1-M1A93

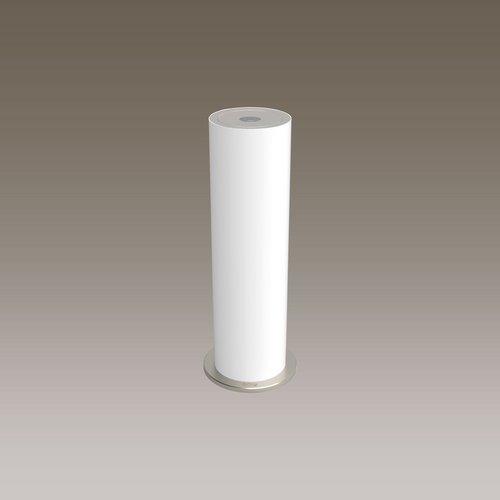

Desk luminaire LEAN

12.5W LED, 1549 Lumen, 124 Lumen/Watt, 3000 Kelvin. L=360mm, CRI>90, UGR<22, IP50. Tube made of diffuse satinated acrylic glass. Foot plate and front side with included button nickel silver pearl matt. With electronic ballast. Can be switched and dimmed via button.

DESIGN

  • Light in its pure form
  • Timeless, elegant line
  • Inlaid front cover discretely seals the tube
  • Ceiling console makes the luminaire appear to float
  • Reduced form fits in perfectly with any style of architecture

CUSTOMISATION

  • Separate direct-indirect control
  • Integrated emergency lighting possible
  • Lighting installation can be configured

CONSTRUCTION

  • Central aluminium profile serves as a load-bearing element
  • Entire technology integrated
  • Invisible suspension
  • Tube diameter adjusted to light requirements

LIGHT QUALITY

  • Glare rating less than UGR 21
  • 3000 K / 4000 K colour rendering, CRI > 90
  • Perfectly illuminated
  • Subtle ceiling illumination for a comfortable light

LIGHT DISTRIBUTION

  • Optimised light output for suspension and surface-mounting
  • Suitable from 100 to 500 lx
  • Suitable from 600 to 12000 lm

INSTALLATION

  • Surface-mounted and pendant luminaires can be mounted in any position
  • Pendant luminaires available in a vertically combinable version (possible up to 15 m)
  • Surface-mounted luminaire panel for pre-installation
  • Combinable pendant luminaires ready for pre-assembly
  • Easy access for installation and service
Example application
Example application
Example application
Example application
Example application
Example application
Example application
Example application

APPLICATIONS

  • Stairways
  • Access areas
  • Reception areas
  • Treatment and therapy rooms
  • Restaurants
  • Classrooms
  • Kindergartens
  • Sport facilities (changing rooms)
  • Bathrooms
  • Kitchens
  • Offices
  • Covered outdoor areas
  • Zones exposed to humidity
